Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

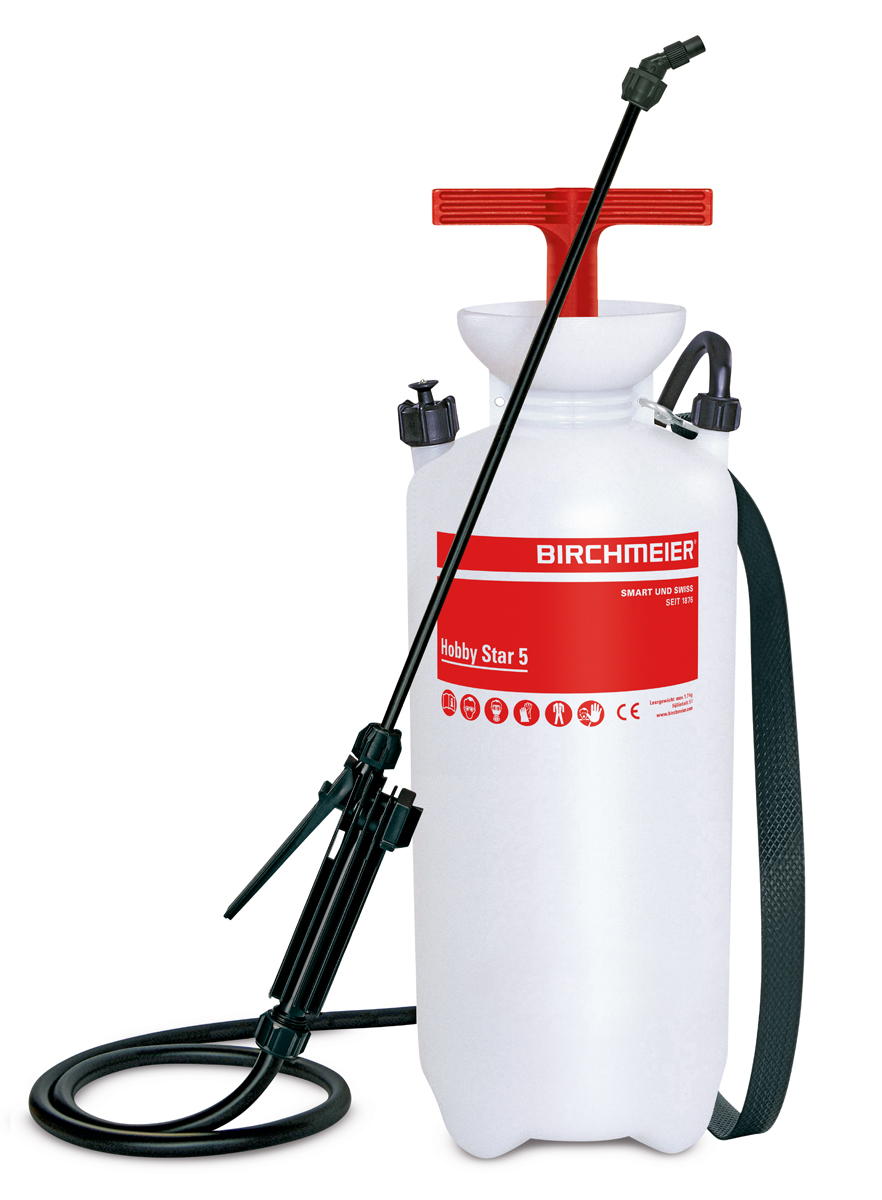

Hobby Star 5

Article number: 11642803 / EAN: 7611034011080
Hobby Star 5
  • 5-Liter Sprühgerät Hobby Star 5 von Birchmeier für Beet, Balkonpflanzen, Kübelpflanzen
  • 5-Liter Sprühgerät Hobby Star 5 von Birchmeier für Beet, Balkonpflanzen, Kübelpflanzen
  • 5-Liter Sprühgerät Hobby Star 5 von Birchmeier für Beet, Balkonpflanzen, Kübelpflanzen

The cost-effective compression sprayer for hobby gardeners.

  • Transparent plastic tank with 5 ltr. filling volume (tank volume 7 ltr.)
  • 3 bar operating pressure
  • With safety valve and integrated filling funnel
  • 40 cm spray lance and adjustable plastic nozzle
  • T-shaped pump handle with integrated trigger holder
  • Simple plug-in system
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)5
Max. working pressure (bar)3
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic
Fitting connectorscompression fitting
Stress classLight duty
Length (mm)180
Width (mm)180
Height (mm)530
Weight (kg)1.6
Device typeCompression sprayer plastic
Special function
Nozzles data
Adjustable nozzle 1.3 mm, PP NBRAdjustable nozzle 1.3 mm, PP NBRTechnical parametersSpray patternPressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4”Adjustable nozzle 1.3 mm, G1/4”Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range1 – 3 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Videos

No videos available.

DownloadsLeafletGarden range
