_REA 15 AZ1

Article number: 12014201 / EAN: 7611034210742

Replaced by REA 15 AC1 (12070701)

Drehzahlgesteuertes Li-Ion Akku-Rückensprühgerät REA 15 AZ1 von Birchmeier
  • Akku-Sprühgerät gewinnt Taspo Award

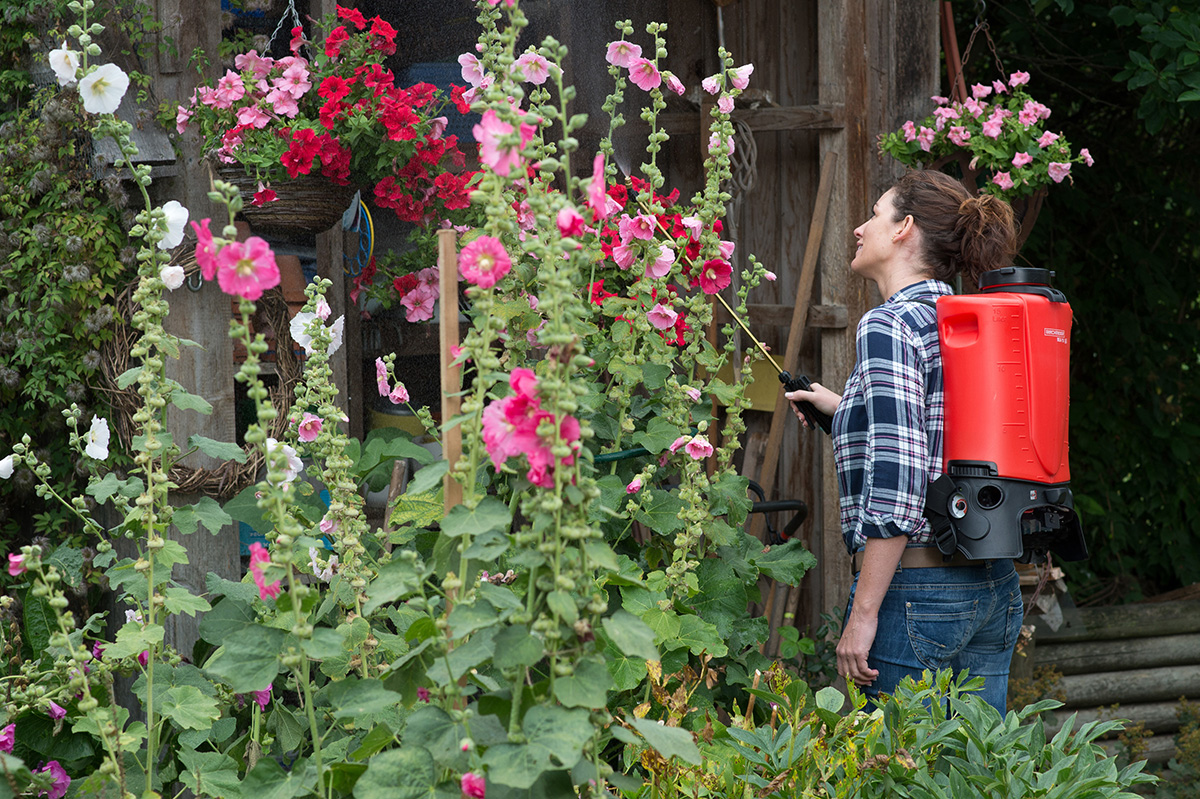

  • Akku-Sprühgerät für den Privatgarten
  • Akku-Sprühgerät für den Privatgarten
  • Akku-Sprühgerät für den Privatgarten

Speed controlled battery powered backpack sprayer

Real working comfort

  • Consistent spray pattern
  • Drop size adjustable
  • "Look and feel" the ergonomics
  • Hose outlet in working direction
  • Click belt system
  • Recessed grips
  • Li-Ion battery


Electronic speed control

  • Pressure range: 1 – 3 bar
  • Protective setup for pump and battery
  • 10 h at 1 bar (~186 l)
  • 3 h at 3 bar (~104 l)


Proven Birchmeier technology

  • Robust pump
  • Tank outlet via suction system
  • Plastic/brass nozzle adjustable
  • Simple plug-in system (compression fitting)
  • Large filling opening with strainer
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
Biological agents
Plant protection
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)3
Nozzle typeAdjustable nozzle 1.7 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic, brass
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorscompression fitting
Stress classStandard duty
Length (mm)220
Width (mm)400
Height (mm)600
Weight (kg)4.1
Device typeBattery sprayer
Special functionBattery unit 14 VElectronic speed control
Nozzles data
Adjustable nozzle 1.7 mm, PP Ms NBRAdjustable nozzle 1.7 mm, PP Ms NBRTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range1 – 25 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
To the nozzle
