Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

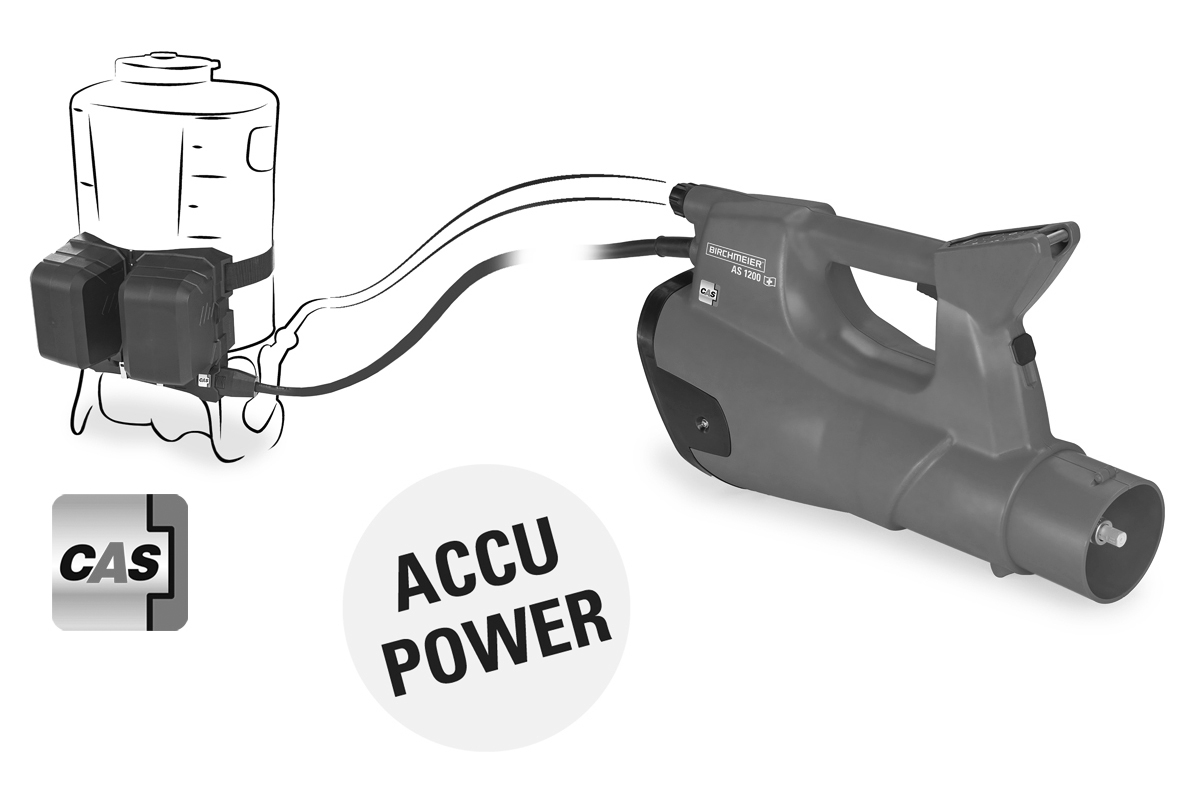

AS 1200 AC1 Battery spray blower (CAS with battery pack, with charger)

Article number: 12129001 / EAN: 7611034023366
AS 1200 AC1
  • Birchmeier Akku-Sprühgebläse mit geringer Abdrift im Weinbau

New: 50% more efficient. Spray effectively and efficiently thanks to air support.

A new dimension to plant protection: Spraying with pressure-controlled liquid supply into the air stream. A large spraying range can be achieved with pre-spraying and a variable air stream. A minimum loss of spray solution and a long reach is the result. The air stream also causes the targeted leaves to move, providing optimum wetting and penetration of foliage and shrubbery. The AS 1200, powered by an additional battery, is combined with a sprayer from the «Accu-Power» line. The spray blower is extremely powerful, easy to operate and impressively quiet. Thus, the AS 1200 is much more than a ordinary mist blower.



Powerful and quit performance

  • Up to 6 hours of rechargeable battery power
  • Adjustable air speeds up to 65 m/s
  • Additional power level
  • Spray distance up to 13 meters
  • Low noise emission
  • High energy efficiency



Unlimited uses

Testimonials

  • Viticulture
  • Fruit growing
  • Gardening and landscaping
  • Ornamental plant cultivation
  • Nurseries
  • Vegetable growing
  • Pest control
  • Disinfection
  • Cleaning
  • and much more



Only in combination with the Birchmeier «Accu-Power» line (REB 15, REC 15, REX 15, A 50, C 50, A 75, A 130, BM 1035).



NEW with CAS: One battery, many solutions

  • CAS* - Unlimited combinations
  • Cross-manufacturer compatibility: 300 devices - 36 brands - 1 battery
  • Different battery packs obtainable (up to 10 Ah)
  • Charge level is displayed by LED lights
  • 3 year guarantee with registration under www.birchmeier.com/3y

* CAS (Cordless Alliance System is a cross-manufacturer battery pack system of leading power tool brands)

 «Accu-Power» Line

www.cordless-alliance-system.com

Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Disinfection
Form of applicationLiquid
Max. working pressure (bar)10
Nozzle typeAnti drift hollow cone AITXA 8001 VK
Anti drift hollow cone AITXA 8002 VK
Anti drift hollow cone AITXA 8003 VK
Spray patternHollow cone nozzle (for smaller shrubs and plants)
Nozzles materialPlastic / Ceramics
Material Device/containerPlastic
Material Fittings
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)464
Width (mm)160
Height (mm)304
Weight (kg)3.5
Device typeBattery spray blower
Special functionBattery unit 2x 18 VSuitable for disinfection
Nozzles data
Anti drift hollow cone AITXA 8002 VKAnti drift hollow cone AITXA 8002 VKTechnical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Anti drift hollow cone AITXA 8003 VKAnti drift hollow cone AITXA 8003 VKTechnical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Anti drift hollow cone nozzle AITXA 8001 VKAnti drift hollow cone nozzle AITXA 8001 VKTechnical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Special nozzle NF 125, G1/4"iSpecial nozzle NF 125, G1/4Technical parametersSpray patternFine hollow cone nozzle (especially suitable for the disinfection)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Special nozzle MV 425 (Accessories)Special nozzle MV 425 (Accessories)Technical parametersSpray patternFull cone nozzle (for larger shrubs and plants)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Special nozzle MV 850 (Accessories)Special nozzle MV 850 (Accessories)Technical parametersSpray patternFull cone nozzle (for larger shrubs and plants)Pressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Safety regulationsSafety regulations
Spare parts and error codeSpare parts and error code AS 1200 AC1
